Case Study: ASV Top Plate

Process: Metal Injection Molding (MIM)

Material: MIM-4605 low-alloy steel

Density: 7.8 g/cm³

UTS: 1,550 MPa (225,000 psi)

Download the PDF

End Use and Function

The ASV top plate is a complex component in vehicle suspension, featuring narrow slots and rib structures that enhance its functionality and strength.

Fabrication

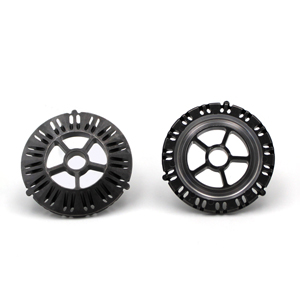

Manufactured using MIM-4605 low-alloy steel, the ASV top plate features a circular design with 30 narrow slots and rib-like structures. A multi-cavity tool molds the parts, with the injection point strategically placed in the center to ensure even material flow and eliminate weld lines. Optimized cooling and venting systems prevent short fills. After molding, parts are robotically transferred to ceramic trays for sintering. Heat treatment follows, achieving a density of 7.8 g/cm³ and a hardness of 42–48 HRC.

Results

The MIM process for the ASV top plate results in significant cost savings of 40% compared to traditional machining. It supports the production of 120,000 units annually while minimizing material waste. The final components boast excellent structural integrity and tight tolerances, crucial for performance in vehicle suspension systems.
